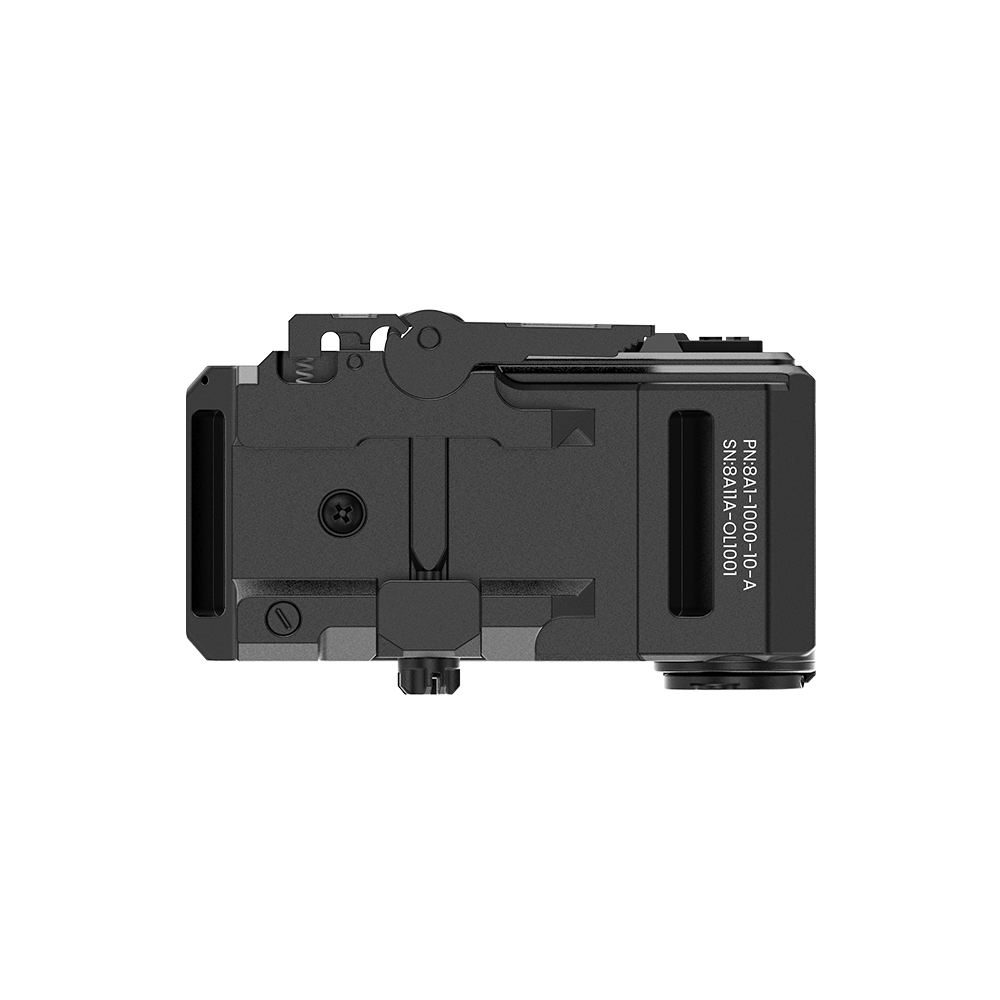

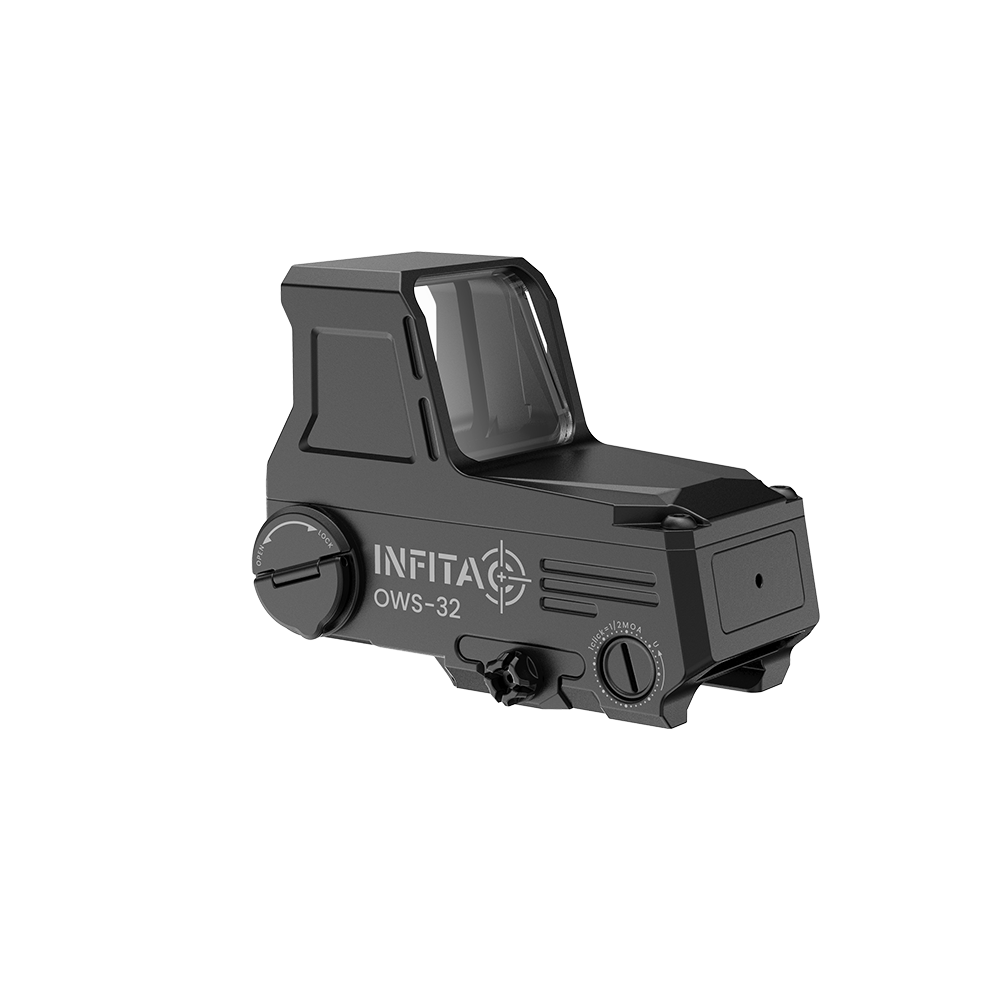

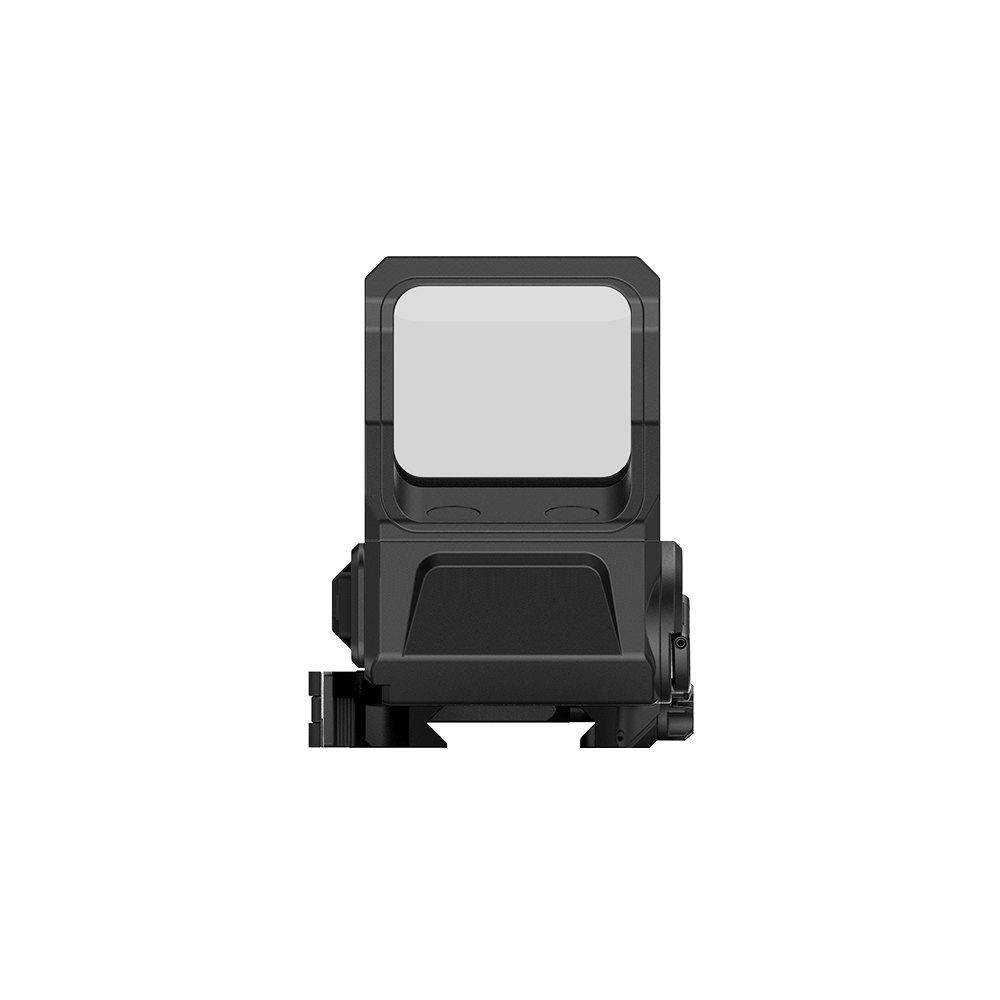

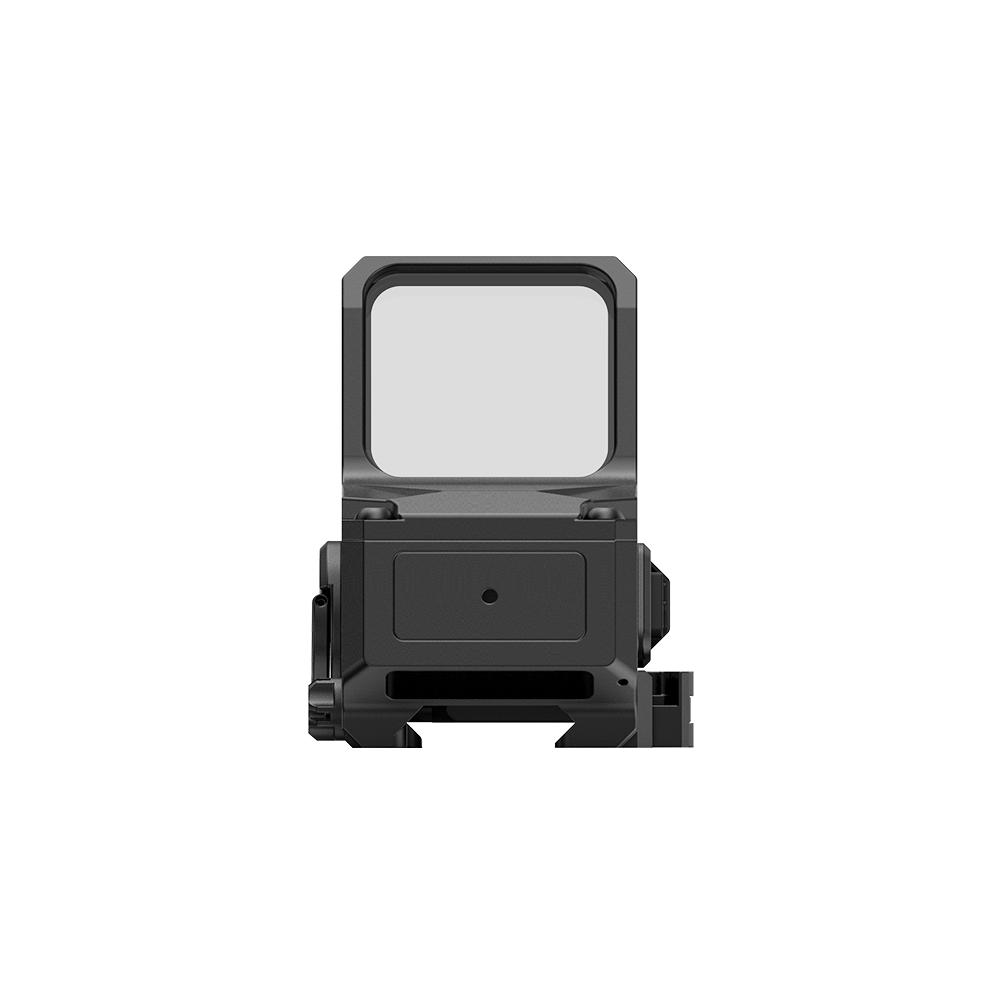

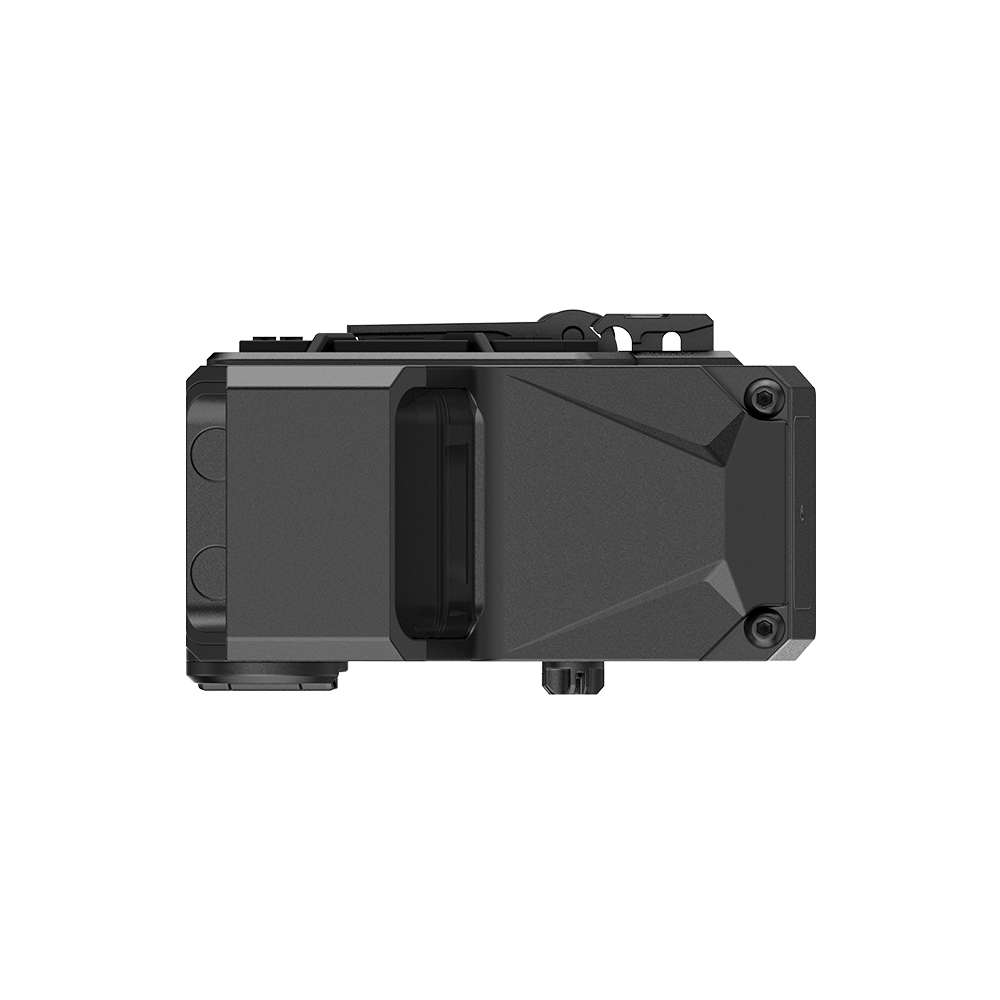

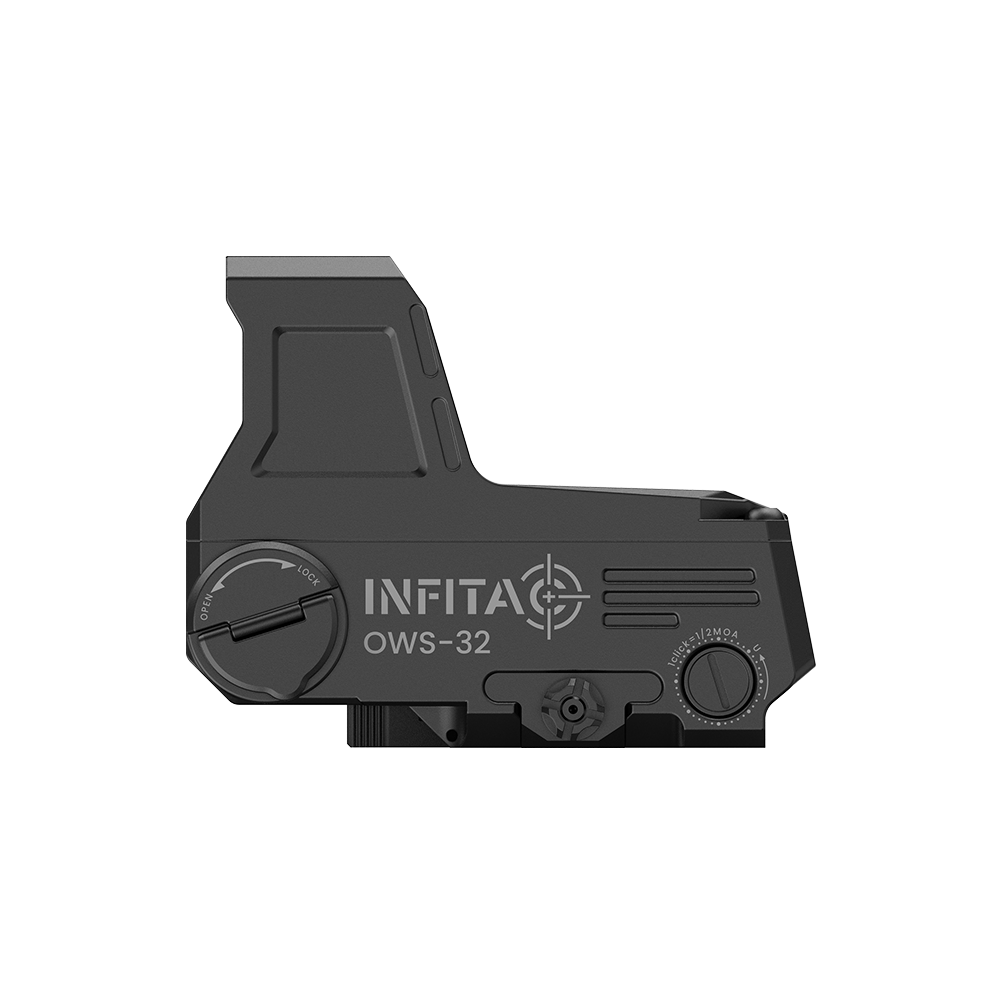

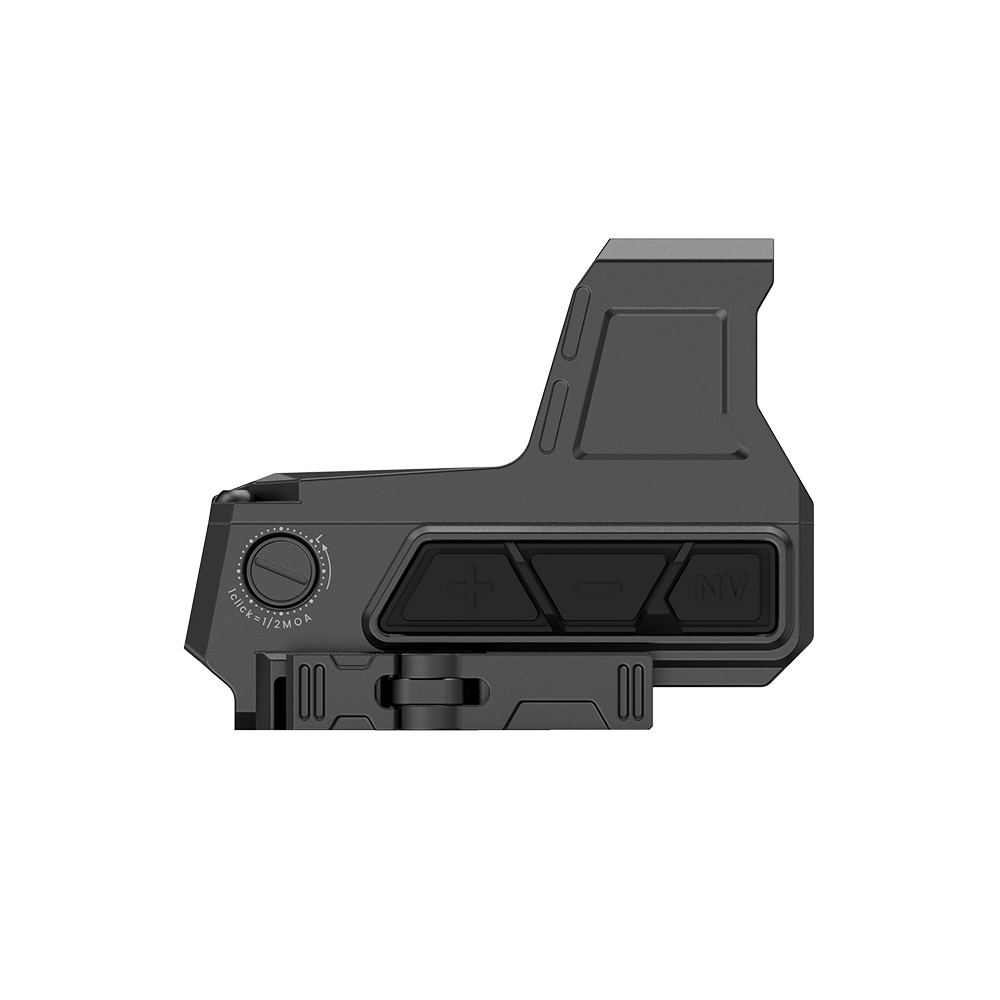

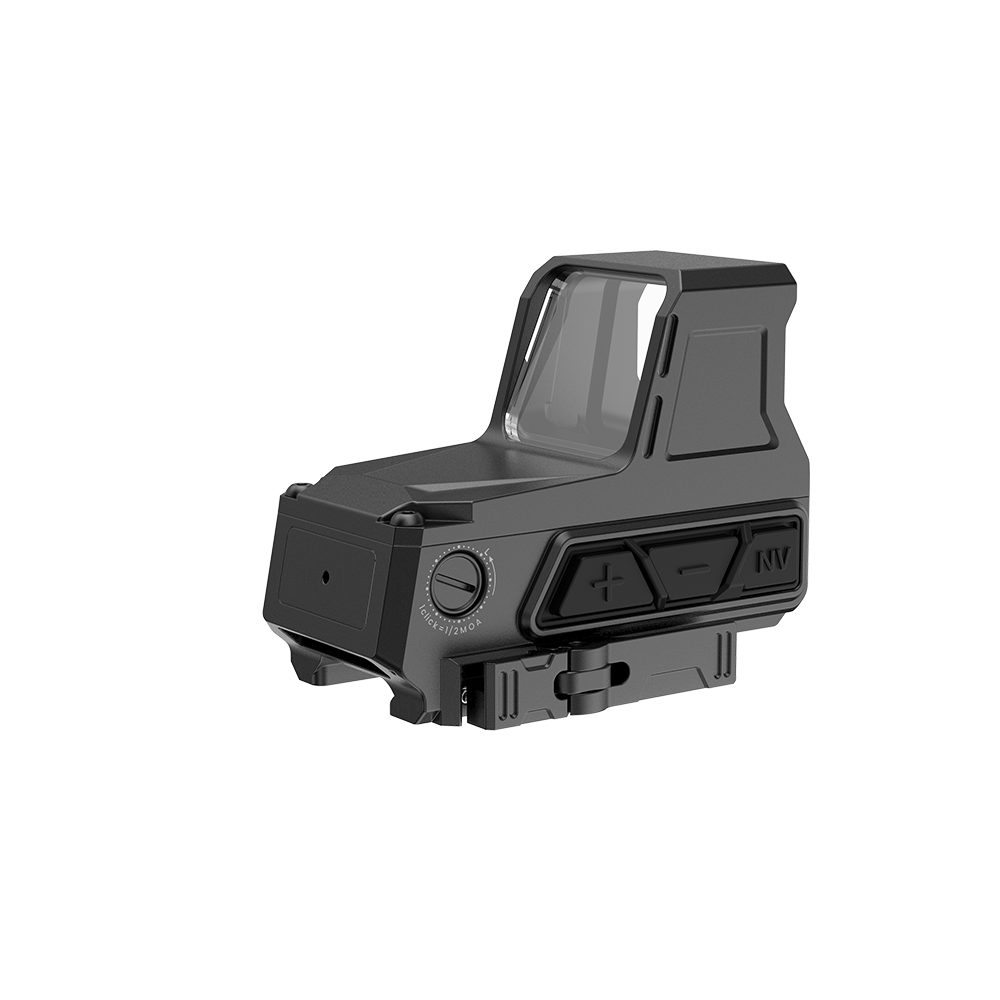

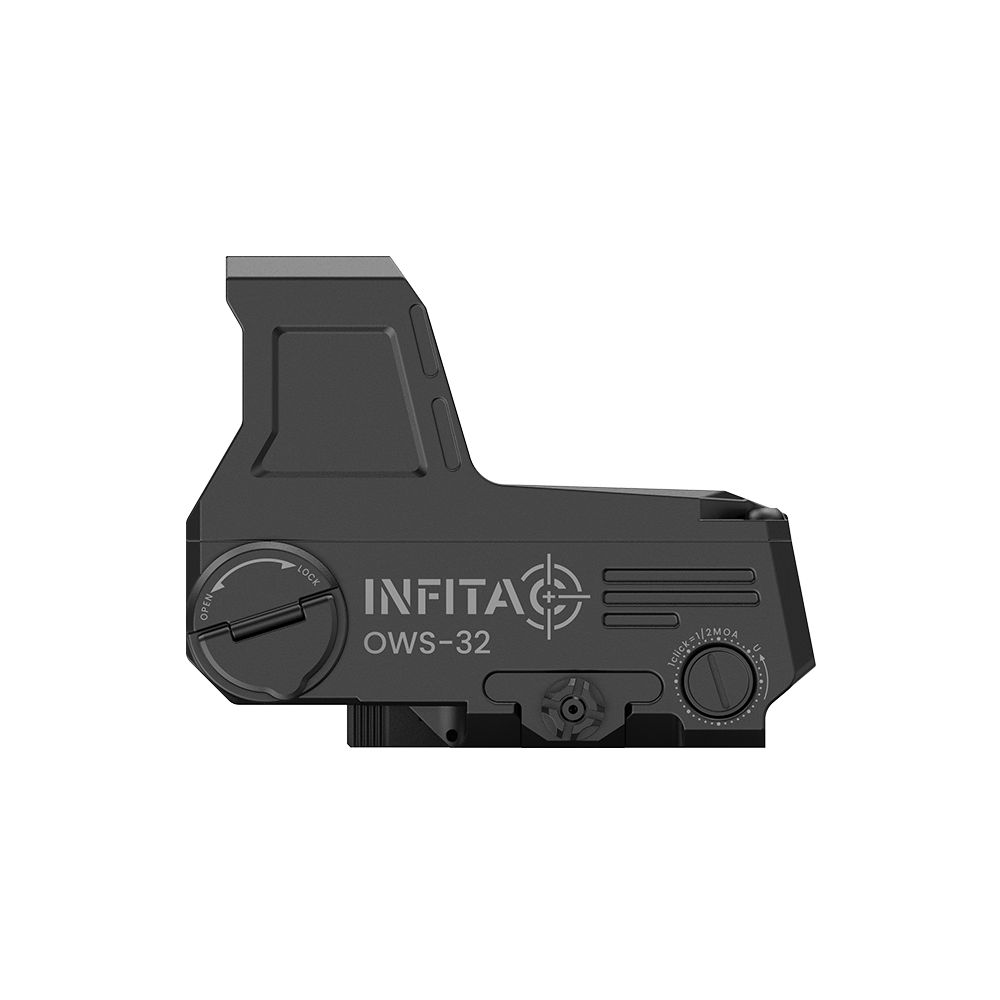

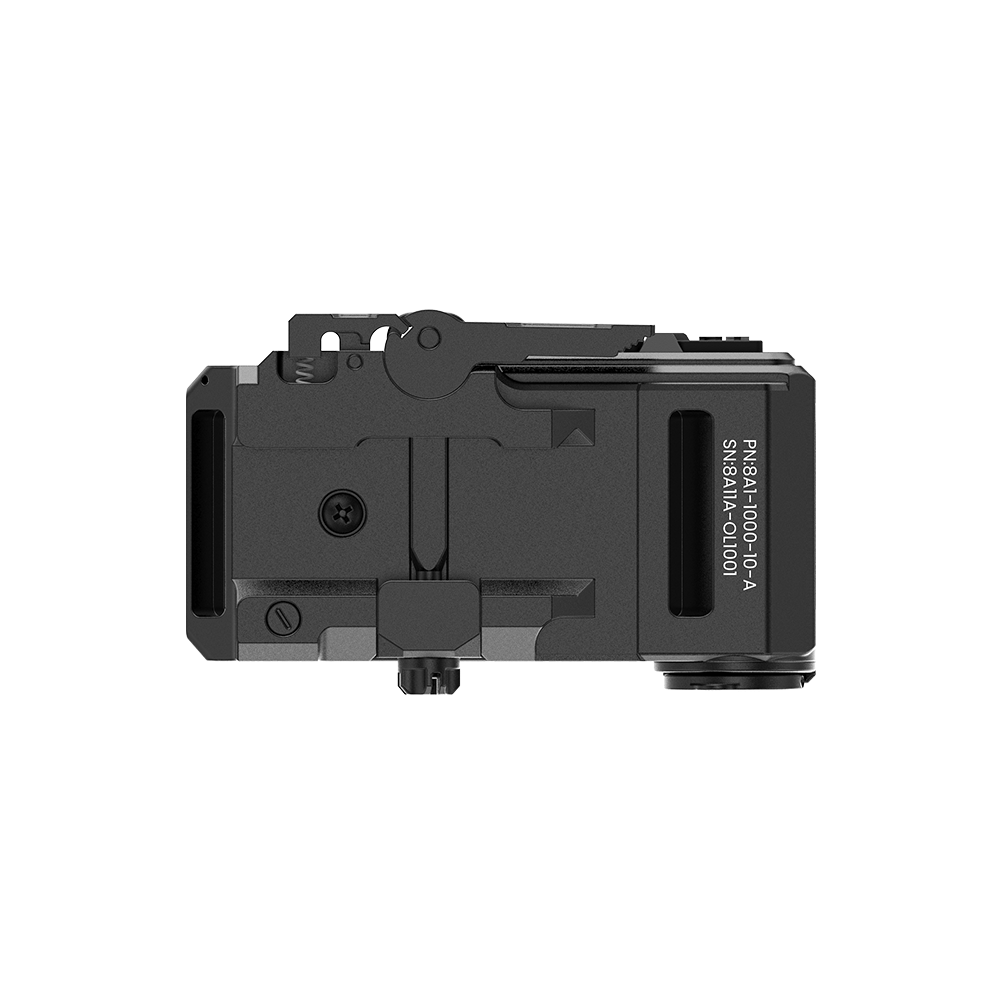

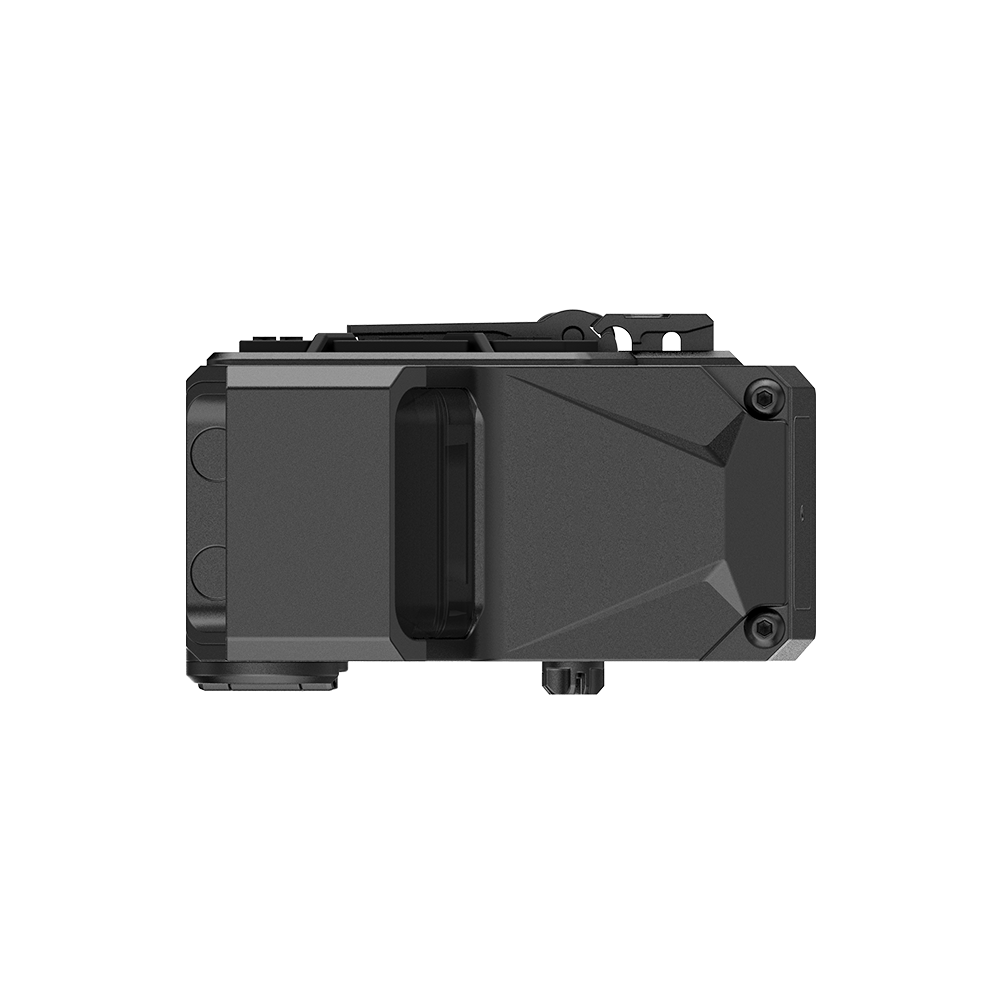

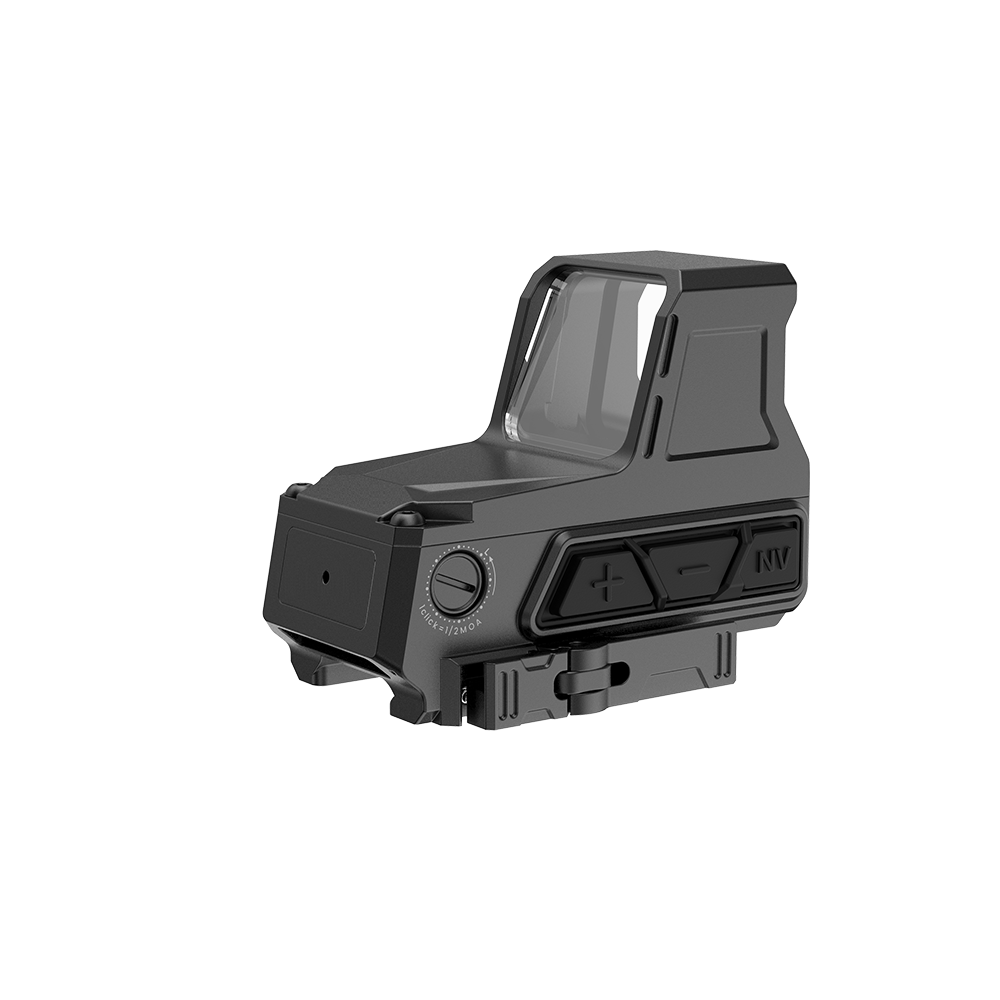

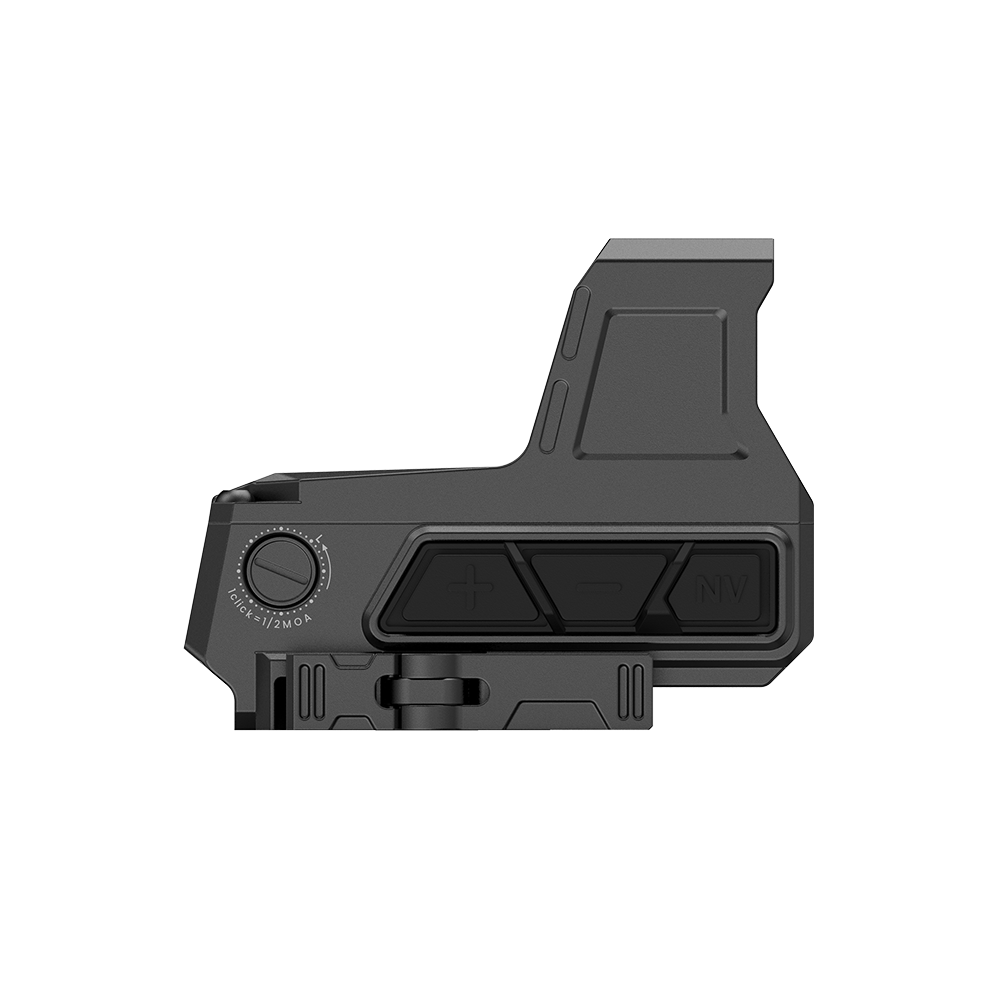

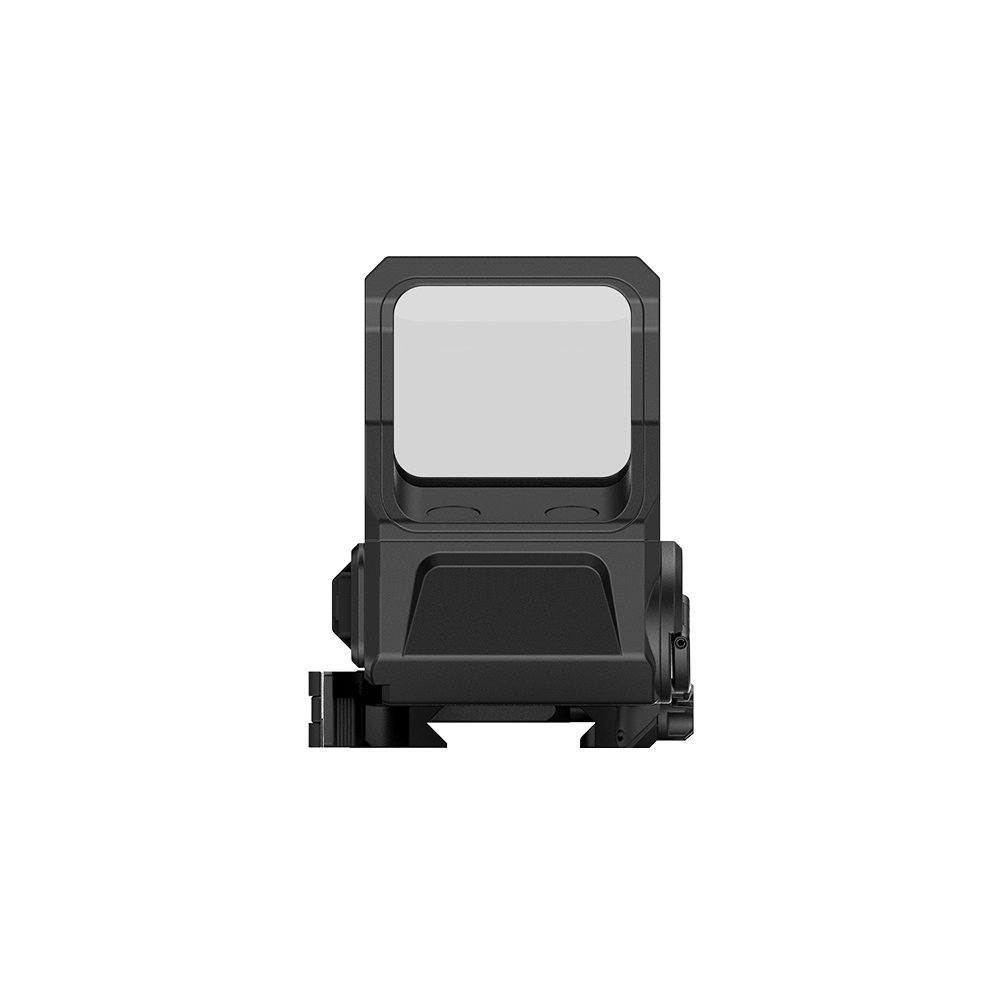

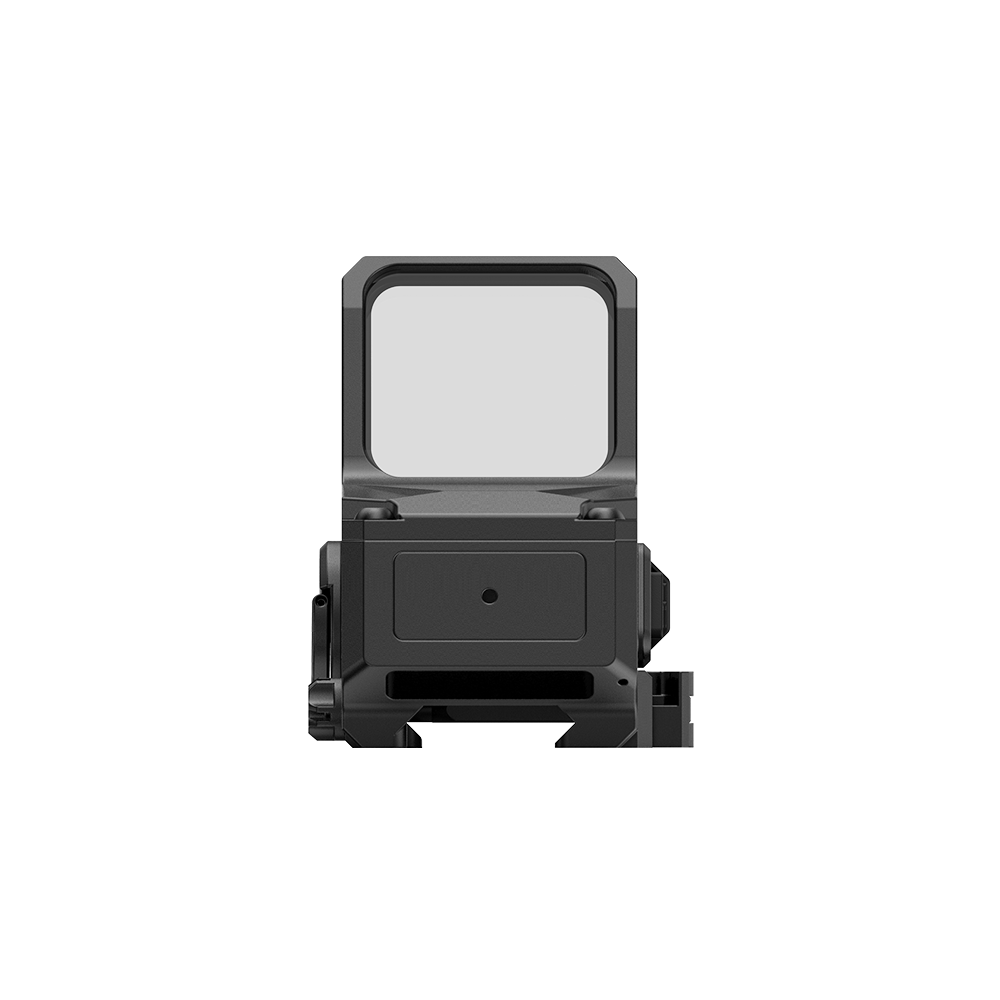

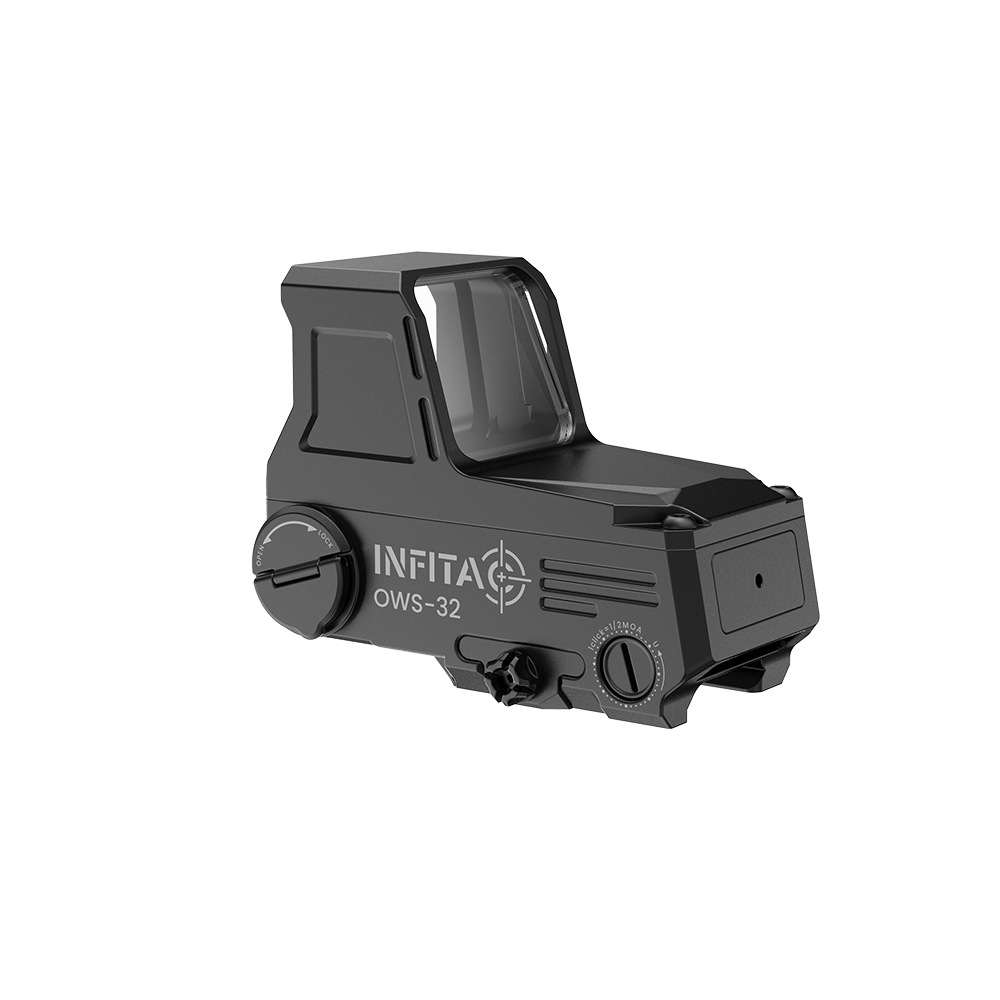

Optical Waveguide Sight OWS-32

NEW
Sale price$549.00

The World’s First Waveguide Sight.
The INFITAC OWS-32 is a compact, parallax-free waveguide sight engineered for rapid target acquisition and two eyes open shooting. It is packed with a multi-reticle system and INFITAC's InstaWake tech for instant activation.
The OWS-32 offers night vision compatible settings and a quick-detach mount for lower 1/3 iron sight co-witness.
Built for rugged performance, it is IP67 waterproof and withstands recoil from hard-hitting calibers like .338 Win Mag and 12-gauge shotguns.
Inovation & Capabilities
  • Advanced Optical Waveguide System
  • High Color Fidelity For Reliable Visibility
  • Astigmatism Friendly
  • Built Tough for .338 Win Mag & 12-Gauge
  • Parallax-Free For Rapid Target Acquisition
  • NV Compatible & Auto Brightness
  • InstaWake Tech
  • Zero Forward Emission
  • Multi-Reticle System - 7 Types
  • 1500h Battery Life
Re-stocking soon
SKU: OWS-32

Estimated shipping time: 2–4 weeks

American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa

SPECIFICATION

Physical Specifications Physical Specifications
Functions Functions
Mechanical Specifications Mechanical Specifications
Battery Power Supply Battery Power Supply
Environment Specifications Environment Specifications
Physical Specifications

Windows Size 1.3 x 1.0 inch (32 x 26 mm)

Dimension 3.3 x 2.0 x 2.6 inch (85 x 50 x 65 mm )

Weight 9.9 oz (280 g)

Functions

InstaWake (motion sensor) Support

Auto Brightness Support

Daylight Settings 20 levels

NV Settings 10 levels

Mechanical Specifications

Housing Material AL7075-T6

Adjustment per Click 0.5 MOA

Windage Travel Range ±50 MOA

Elevation Travel Range ±50 MOA

Battery Power Supply

Battery 1xCR123A

Max. Operation Time (t=22°C) ≥ 1500 h

Environment Specifications

Operating Temperature -22~+140 °F (-30~+60 °C)

IP Rating IP67

Recoil, g/s² 1200

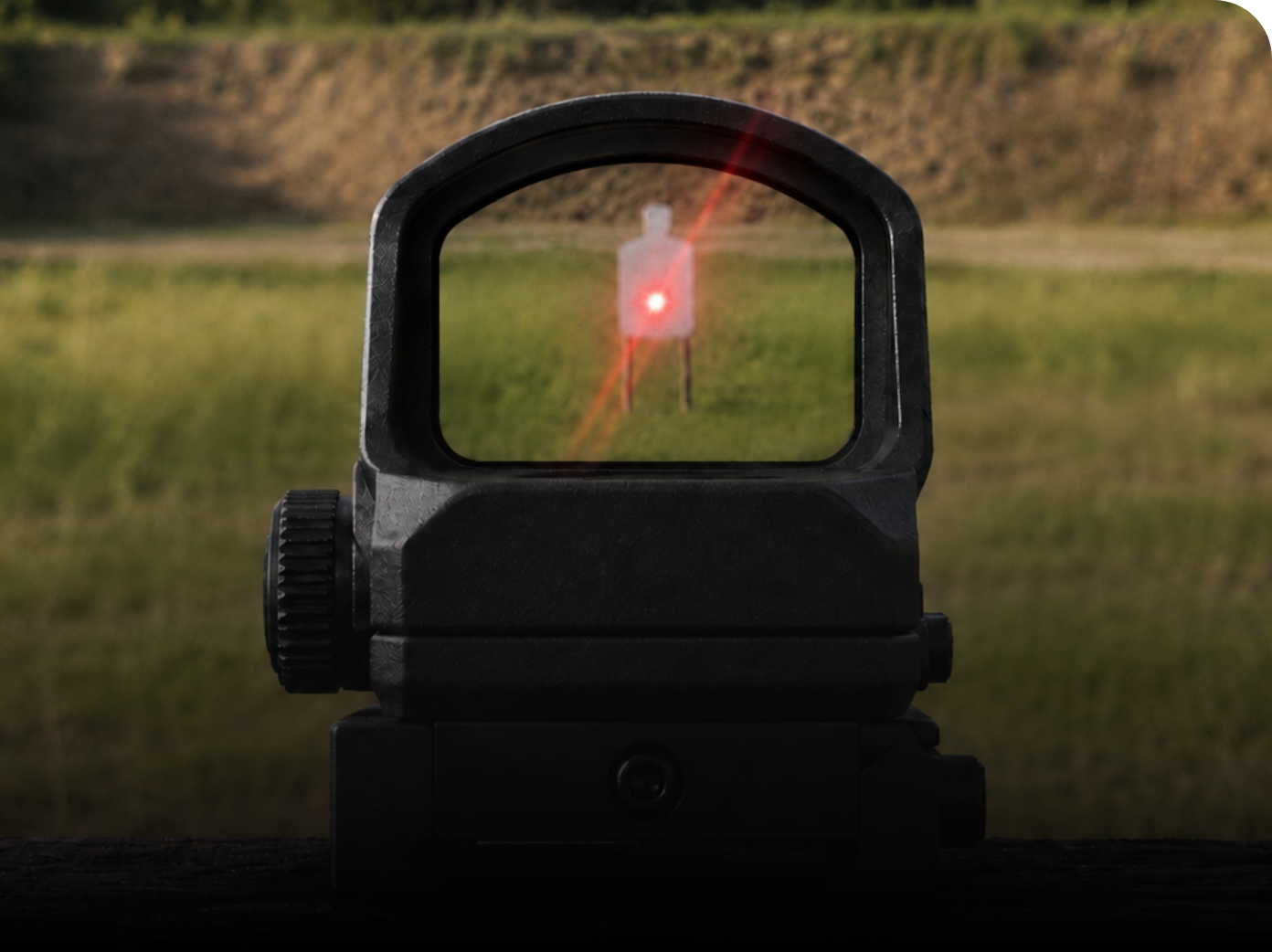

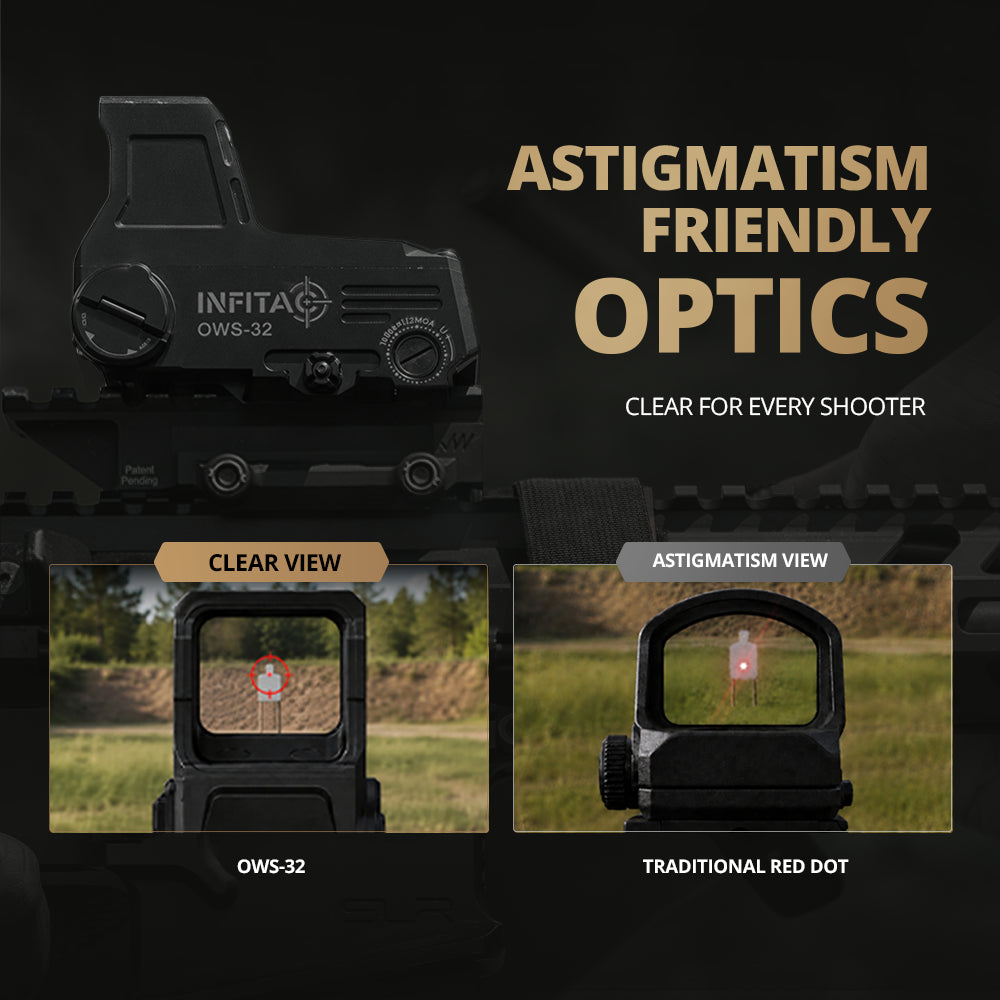

Astigmatism-Friendly Viewing Experience

Unlike traditional red dot systems that may appear distorted or starburst-shaped to users with astigmatism, the OWS-32 delivers a clean, well-defined reticle with improved clarity and edge sharpness.

TRADITIONAL RED DOT

OWS-32

Visual differences may vary by individual eyesight.

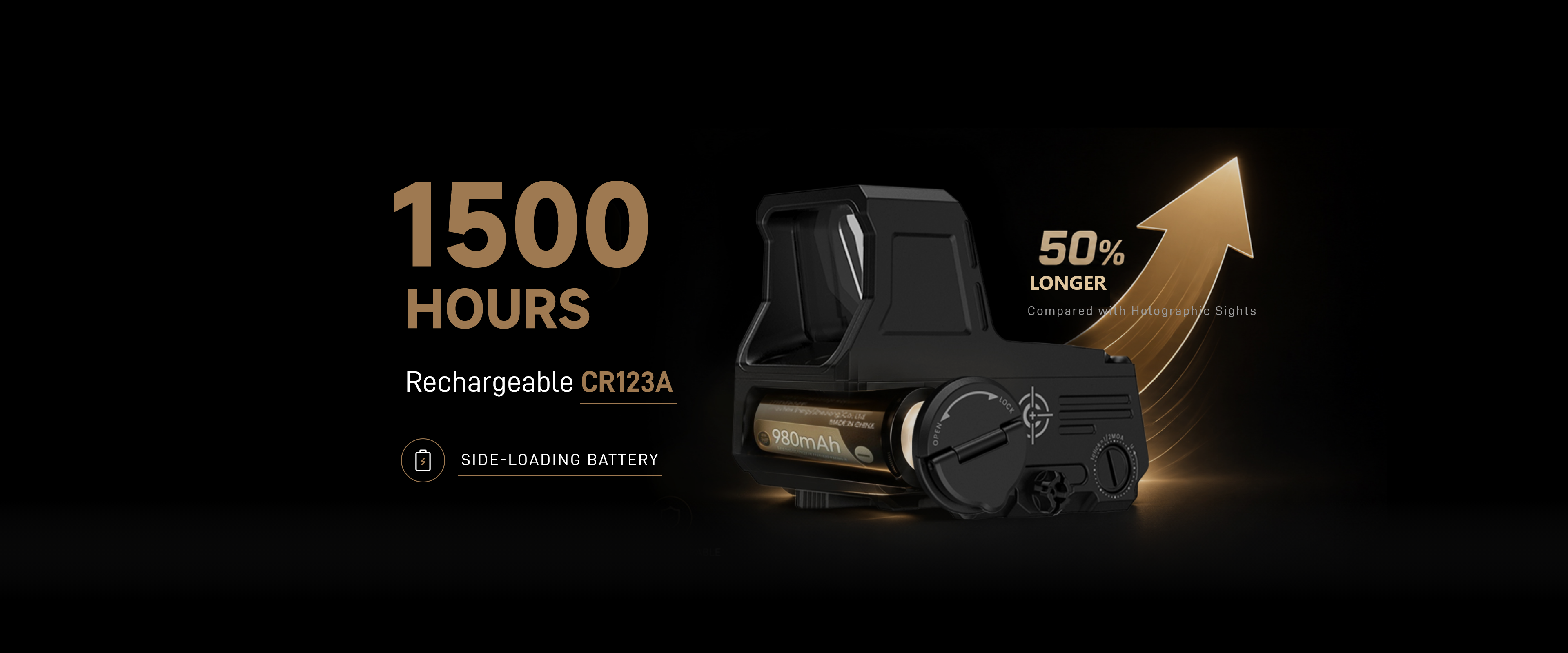

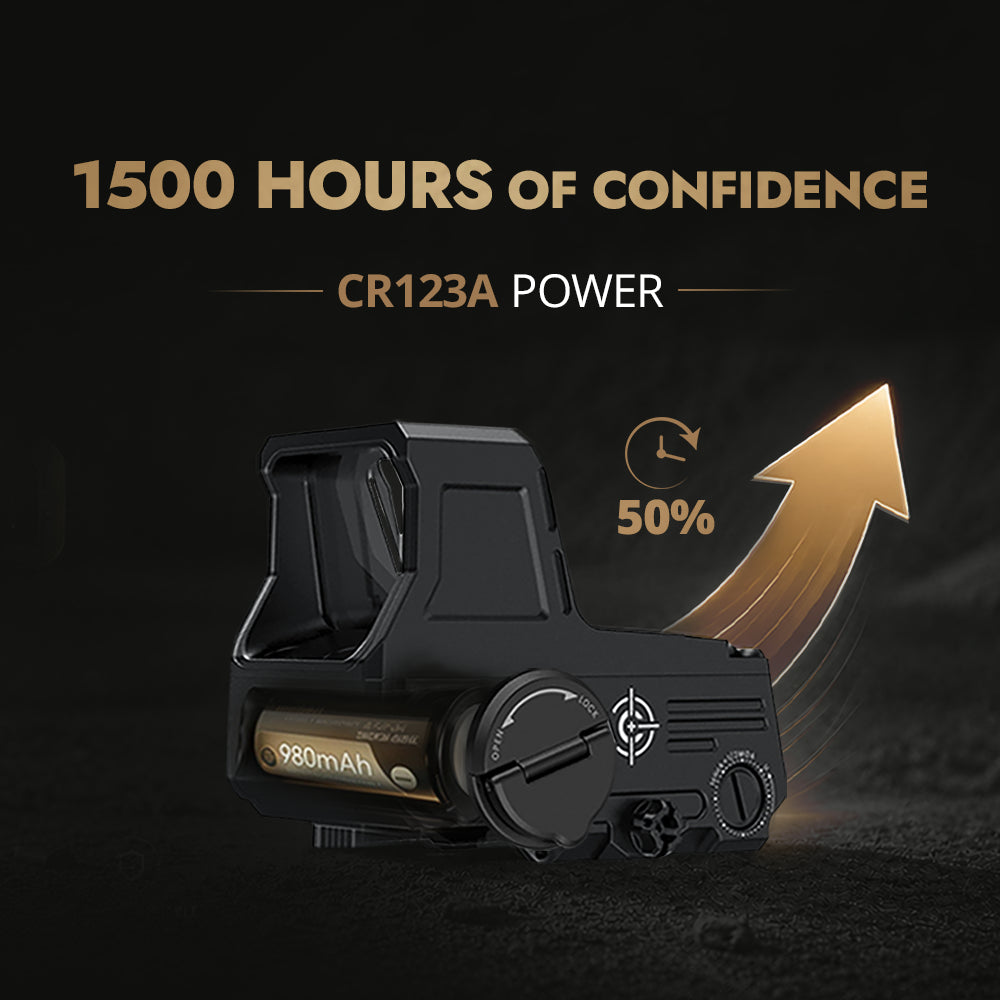

1500 Hours of Confidence

Powered by a CR123 battery, the OWS-32 delivers up to 1500 hours of runtime — 50% longer than conventional holographic sights. Side-loading battery design ensures fast replacement without interrupting operation.

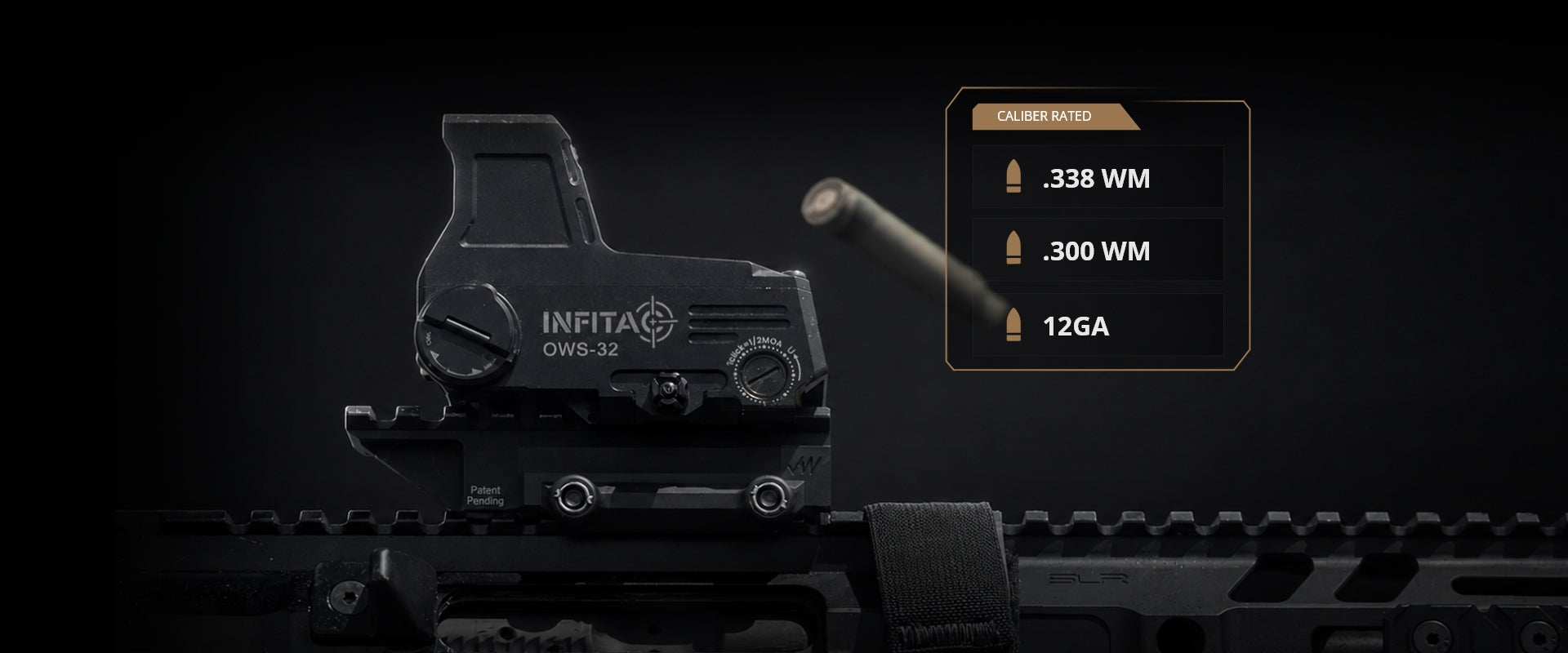

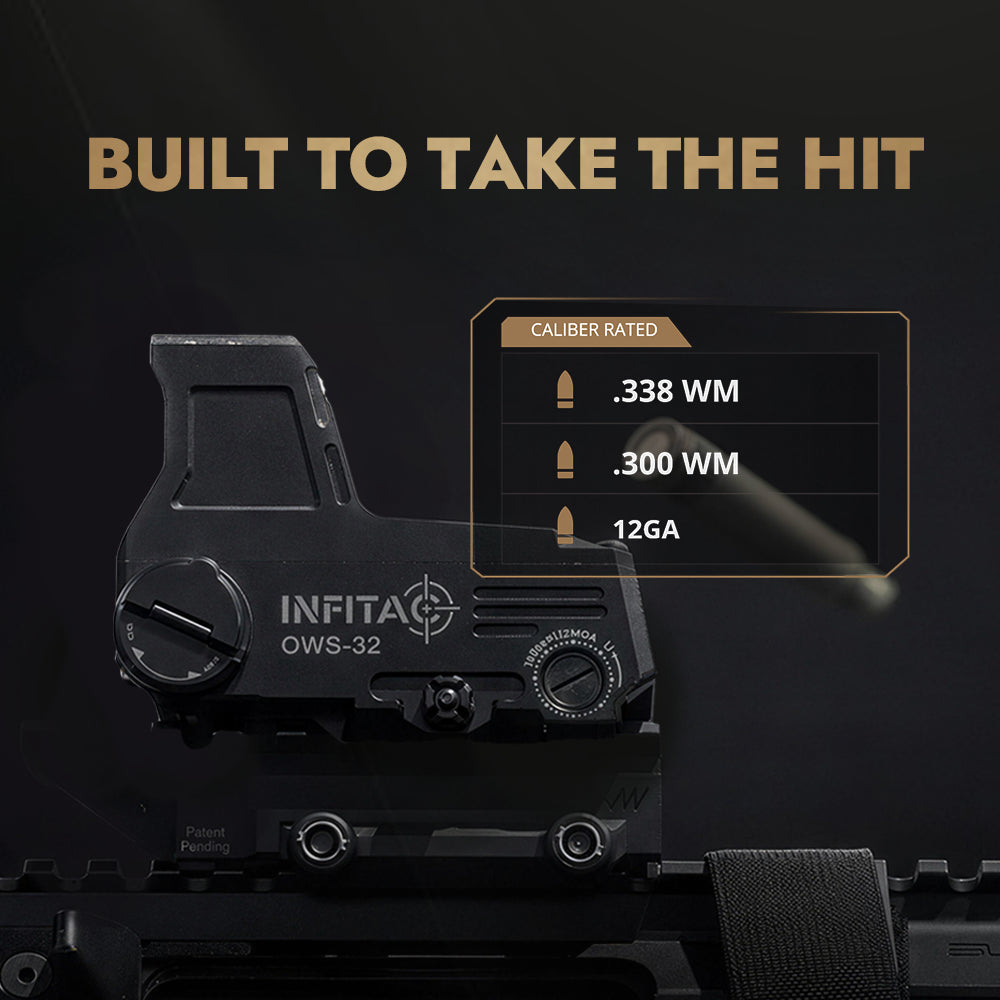

Built to Take the Hit

Engineered to withstand up to 1200G recoil, the OWS-32 performs reliably on high-caliber platforms including .338 WM, .300 WM, and 12-gauge shotguns.

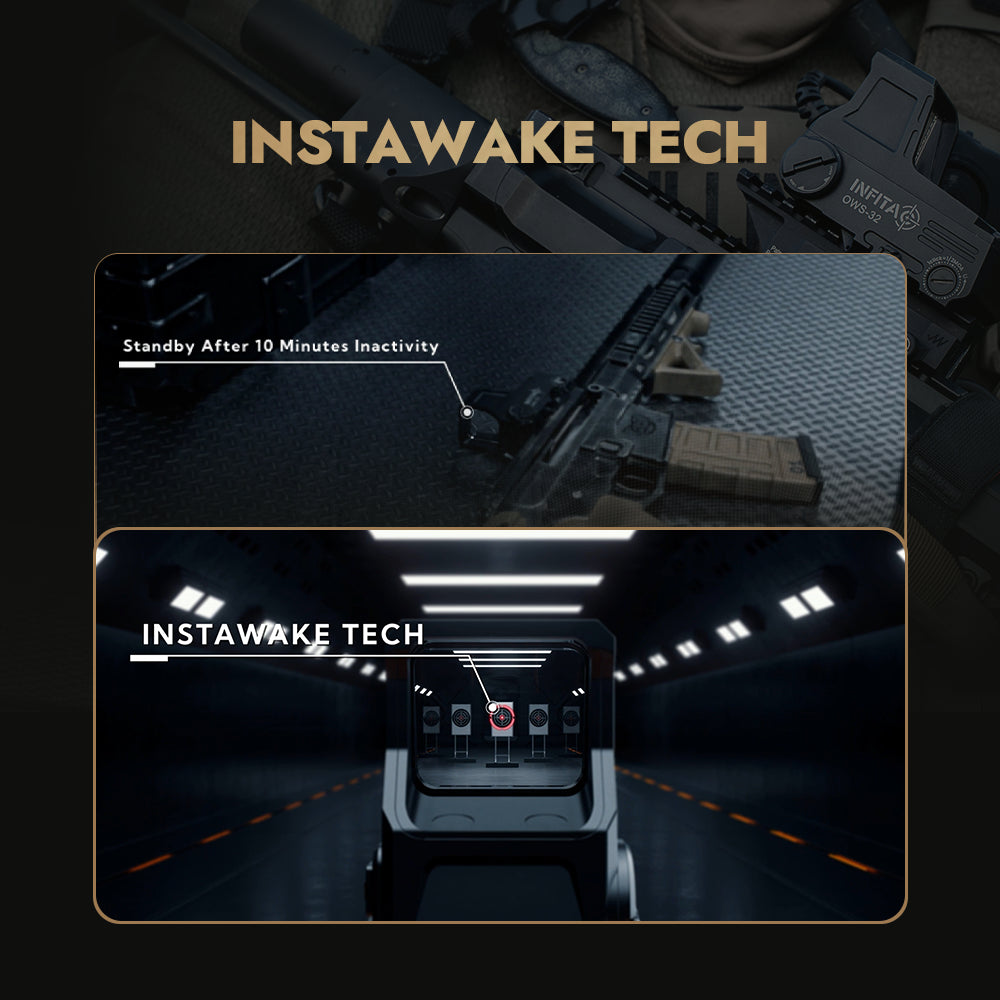

InstaWake Tech.

After 10 minutes of inactivity, the system enters sleep mode and instantly reactivates upon motion — keeping you ready without manual input.

Clarity in Every Environment

From bright daylight to low light and rapidly changing conditions, the OWS-32 delivers consistently stable and clear imaging — without dimming, color shift, or visual distractions commonly found in traditional optics.

Low Light

Bright Daylight

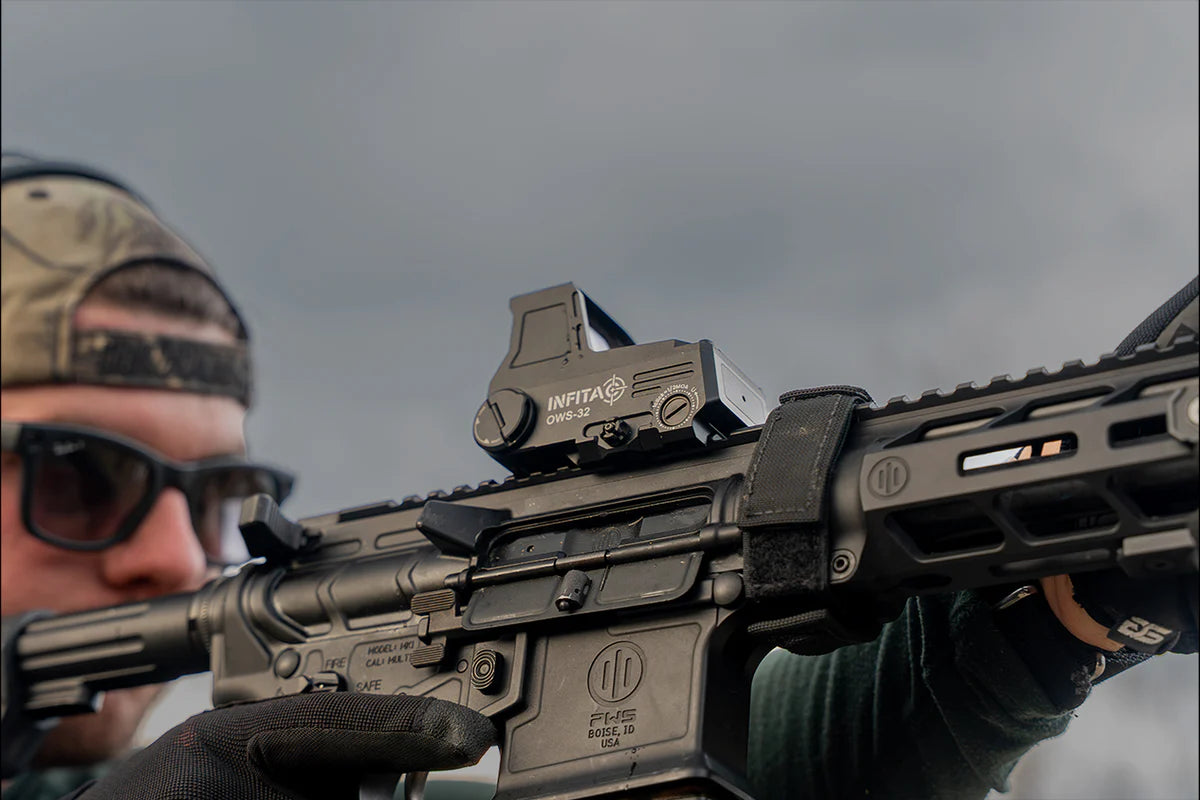

Ready for Every Scenario

With dedicated night vision settings and a 1/3 lower co-witness design, the OWS-32 integrates seamlessly with night vision devices, thermal optics, and magnifiers — maintaining a clean, unobstructed sight picture in complex setups.

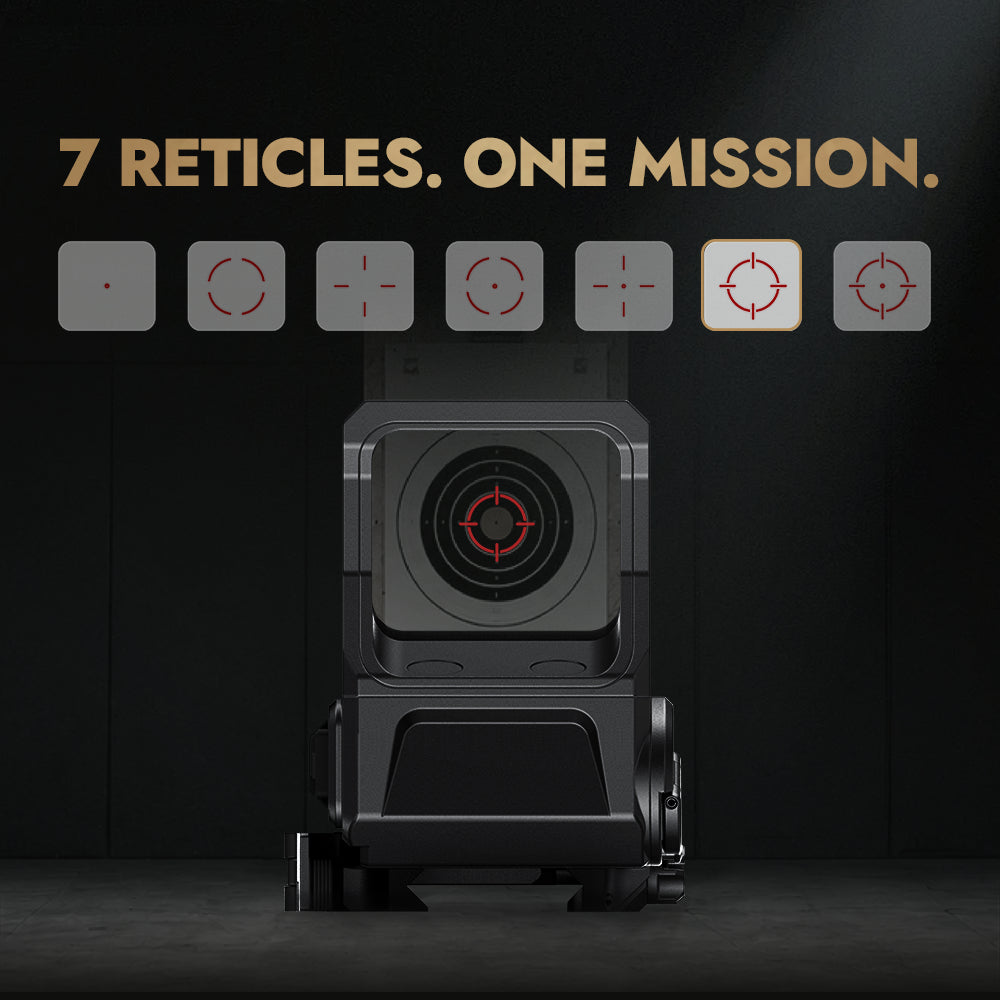

7 Reticles. One Mission.

Choose from seven reticle options with crisp, clean edges.
Seamlessly switch between fast acquisition, dynamic tracking, and precision aiming to adapt to any scenario.

2.5 MOA dot

65 MOA circle

Crosshair

2.5 MOA Dot + 65 MOA Circle

2.5 MOA Dot + Crosshair

65 MOA Circle + Crosshair

2.5 MOA Dot + 65 MOA Circle + Crosshair

Minimal target obstruction for higher precision

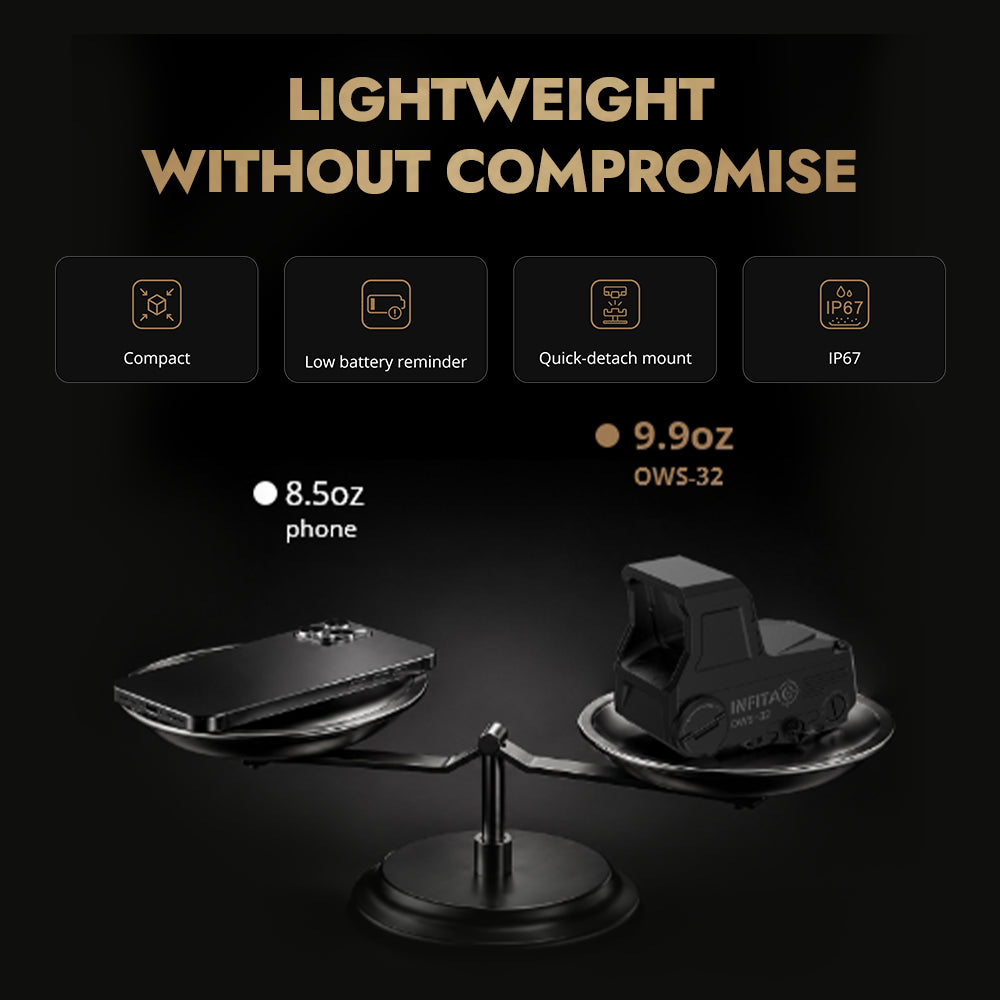

Lightweight Without Compromise

Weighing just 9.9oz with compact dimensions (85 × 50 × 65 mm), the OWS-32 delivers full tactical capability in a lightweight, robust housing.
